Projekt Beschreibung
Einziehstopfen mit Scheibe
INtherm® 40 ± 5 Shore A
Größen farblich unterscheidbar

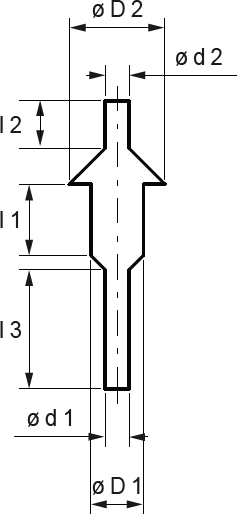

Maße in mm, Toleranzen DIN ISO 3302-1, M3
| wdt_ID | Artikel-Nr. | Gewinde | ø D 1 | ø D 2 | ø d 2 | ø d 1 | l 1 | l 2 | l 3 | Farbe |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 138129 | 2,6 | 4,2 | 1,6 | 1,6 | 10,0 | 15,0 | 40,0 | hellblau | |
| 2 | 139501 | – | 2,9 | 10,0 | 2,5 | 2,5 | 15,0 | 10,0 | 20,0 | blau |
| 3 | 139502 | – | 3,0 | 10,0 | 2,0 | 3,4 | 10,0 | 10,0 | 10,0 | grün |
| 4 | 139503 | M 4 | 3,5 | 10,0 | 2,2 | 3,8 | 10,0 | 10,0 | 15,0 | gelb |
| 5 | 139504 | – | 3,6 | 10,0 | 2,0 | 3,0 | 99,0 | 127,0 | 99,0 | rot |
| 6 | 139505 | – | 3,8 | 10,0 | 3,0 | 3,0 | 15,0 | 10,0 | 20,0 | braun |
| 7 | 139506 | – | 4,0 | 10,0 | 2,2 | 3,4 | 10,0 | 10,0 | 9,0 | grau |
| 8 | 139507 | – | 4,5 | 10,0 | 2,5 | 3,8 | 99,0 | 127,0 | 99,0 | grün |
| 9 | 139508 | – | 4,5 | 12,0 | 3,0 | 3,0 | 15,0 | 10,0 | 20,0 | blau |
| 10 | 139509 | M 5 | 4,7 | 12,7 | 3,0 | 4,8 | 99,0 | 102,0 | 11,0 | schwarz |
| 11 | 139510 | – | 5,0 | 15,0 | 4,0 | 4,0 | 15,0 | 10,0 | 20,0 | gelb |
| 12 | 139511 | M 6 | 5,5 | 14,0 | 4,0 | 4,0 | 15,0 | 10,0 | 20,0 | grün |
| 13 | 139512 | – | 6,0 | 15,0 | 3,6 | 5,0 | 10,0 | 10,0 | 9,0 | braun |
| 14 | 139513 | M 8 | 7,4 | 16,0 | 4,0 | 4,0 | 15,0 | 10,0 | 20,0 | rot |
| 15 | 139514 | – | 8,0 | 15,0 | 5,0 | 5,0 | 10,0 | 10,0 | 153,0 | gelb |
| 16 | 139515 | M 10 | 9,2 | 18,0 | 5,0 | 5,0 | 15,0 | 10,0 | 25,0 | blau |
| 17 | 139516 | – | 10,0 | 20,0 | 5,7 | 7,5 | 10,0 | 10,0 | 193,0 | schwarz |
| 18 | 139518 | – | 10,0 | 18,0 | 5,0 | 5,0 | 20,0 | 10,0 | 25,0 | blau |
| 19 | 139517 | M 12 | 11,0 | 20,0 | 5,0 | 5,0 | 15,0 | 10,0 | 25,0 | grau |
| 20 | 139522 | – | 17,0 | 41,0 | 18,0 | 10,0 | 46,0 | 20,0 | 32,0 | nature |
| Artikel-Nr. | Gewinde | ø D 1 | ø D 2 | ø d 2 | ø d 1 | l 1 | l 2 | l 3 | Farbe |
