Scheiben für Einziehstopfen
von INtherm®
Größen farblich unterscheidbar

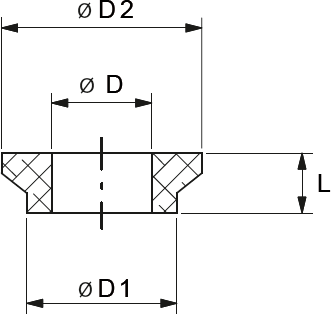

Maße in mm, Toleranzen DIN ISO 3302-1, M3
| wdt_ID | Artikel-Nr. | ø D 2 | ø D 1 | ø D | L | Farbe |
|---|---|---|---|---|---|---|
| 1 | 139701 | 10,0 | 6,0 | 2,6 | 6,0 | pink |
| 2 | 139702 | 10,0 | 6,0 | 3,4 | 6,0 | weiß |
| 3 | 139703 | 12,0 | 7,0 | 4,1 | 6,0 | grün |
| 4 | 139704 | 14,0 | 8,0 | 5,0 | 6,0 | blau |
| 5 | 139705 | 16,0 | 10,0 | 6,7 | 6,0 | gelb |
| 6 | 139706 | 18,0 | 12,0 | 8,2 | 6,0 | braun |
| 7 | 139707 | 20,0 | 15,0 | 9,9 | 6,0 | rot |
| Artikel-Nr. | ø D 2 | ø D 1 | ø D | L | Farbe |
